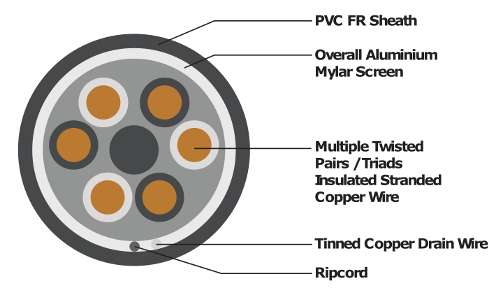

Overall screened with specially selected lay schemes in order to counter static and cross talk noises. A “clean” and accurate signal can therefore be expected to be transferred. A communication wire is standard in all multi-pair / triad cables.
For interconnections between instruments, sensors and monitors.
Available in 500 and 1000 metre drums.
Cut lengths available on request.

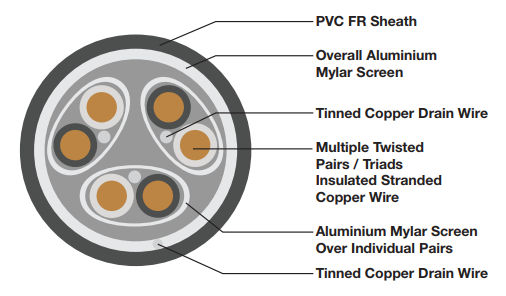

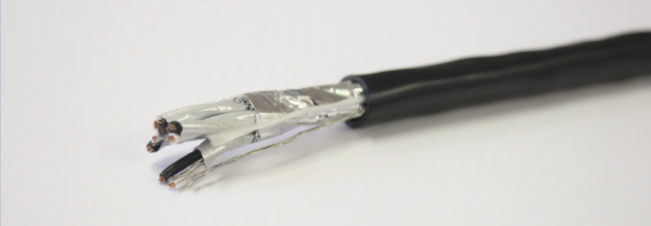

Individual and overall screened with specially selected lay schemes in order to counter static and cross talk noises. A “clean” and accurate signal can therefore be expected to be transferred.
For interconnections between instruments, sensors and monitors.
Available in 500 and 1000 metre drums.
Cut lengths available on request.

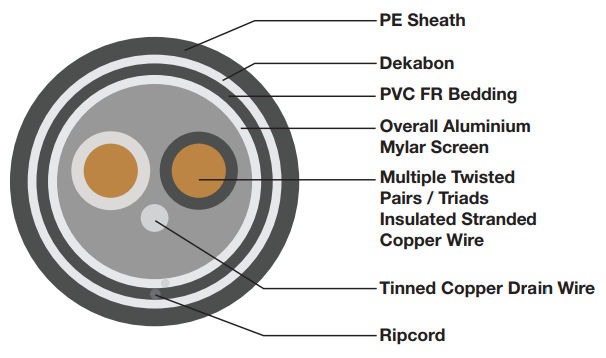

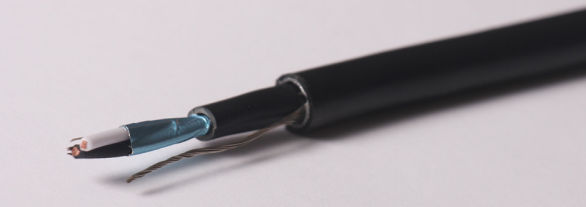

Overall screened with specially selected lay schemes in order to counter static and cross talk noises. A “clean” and accurate signal can therefore be expected to be transferred. APL Armouring is provided for increased mechanical protection. The APL/PE Sheath provides an excellent moisture barrier.
For interconnections between instruments, sensors and monitors.
Available in 500 and 1000 metre drums.
Cut lengths available on request.

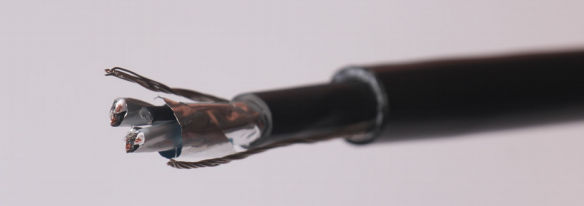

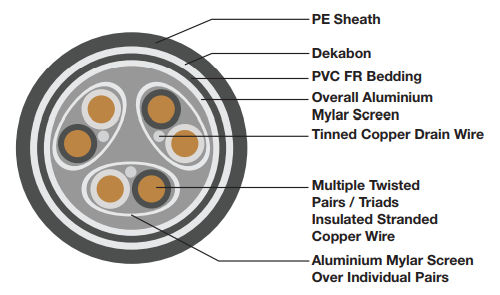

Individual and overall screened with specially selected lay schemes in order to counter static and cross talk noises. A “clean” and accurate signal can therefore be expected to be transferred. APL Armouring is provided for increased mechanical protection. The APL/PE Sheath provides an excellent moisture barrier.
For interconnections between instruments, sensors and monitors.
Available in 500 and 1000 metre drums.
Cut lengths available on request.

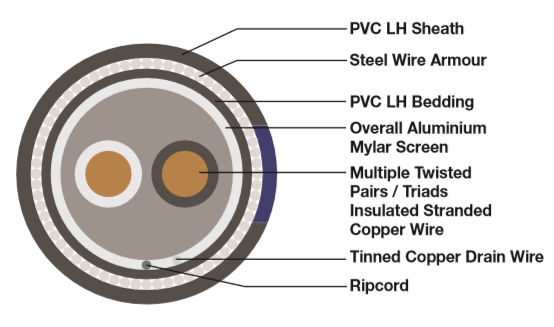

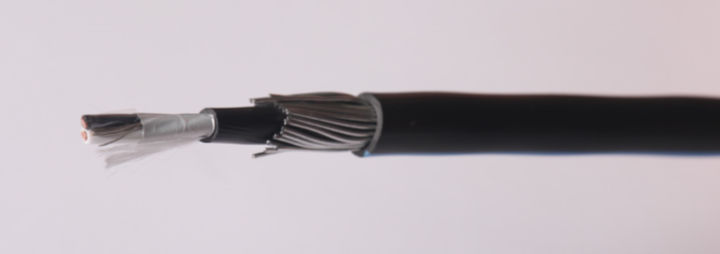

Overall screened with specially selected lay schemes in order to counter static and cross talk noises. A “clean” and accurate signal can therefore be expected to be transferred. Steel Wire Armouring is provided for increased mechanical protection.
For interconnections between instruments, sensors and monitors.
Available in 500 and 1000 metre drums.
Cut lengths available on request.

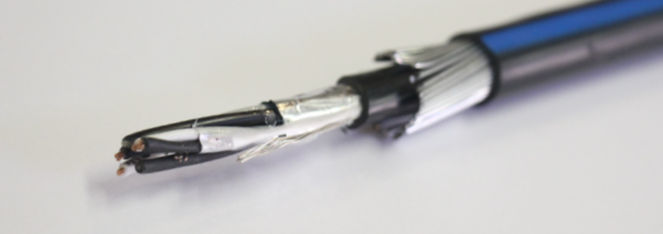

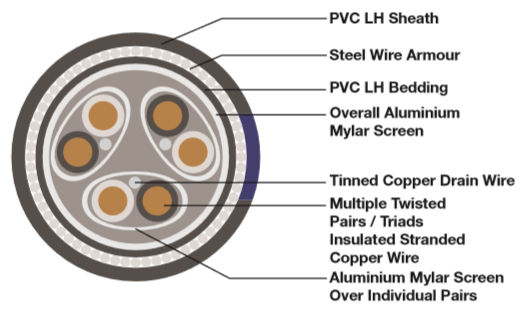

Individual and overall screened with specially selected lay schemes in order to counter static and cross talk noises. A “clean” and accurate signal can therefore be expected to be transferred. Steel Wire Armouring is provided for increased mechanical protection.
For interconnections between instruments, sensors and monitors.
Available in 500 and 1000 metre drums.
Cut lengths available on request.

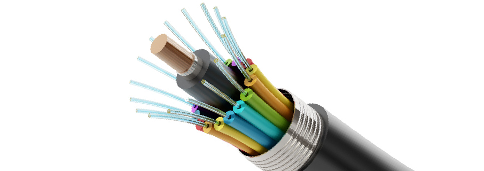

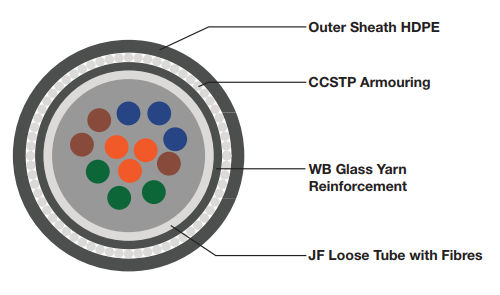

Made with high quality optical fibres suitable for operation at 850nm & 1300nm. The fibres conform to international standard ITU-T G651. The fibres have excellent geometrical properties to yield low splice loss. The fibres have dual acrylate coating and colour of the coating will not change over period of time.
Communication applications.
Available in 500 metre drums.
Cut lengths available on request.

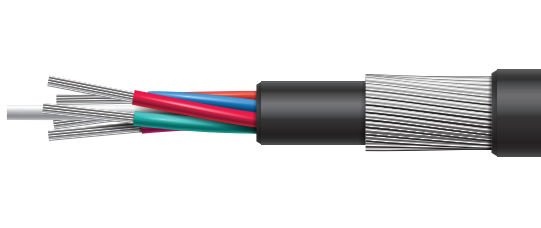

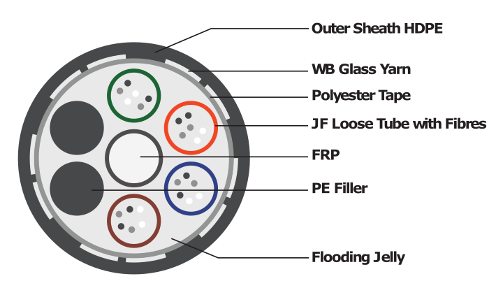

Made with high quality optical fibres suitable for operation at 850nm & 1300nm. The fibres conform to international standard ITU-T G651. The fibres have excellent geometrical properties to yield low splice loss. The fibres have dual acrylate coating and colour of the coating will not change over period of time.
Communication applications.
Available in 500 metre drums.
Cut lengths available on request.

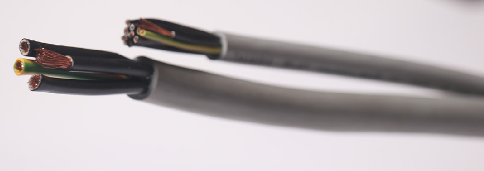

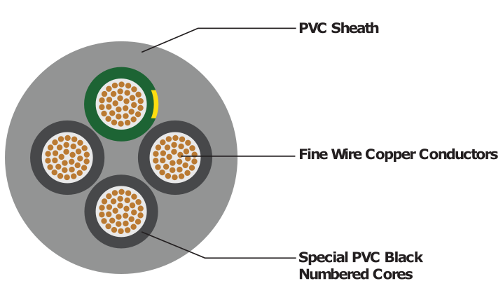

Fine wire copper conductors. Core insulation of special PVC Z 7225. Black cores with continuous white numbering. Green-yellow earth core in the outer layer (3 cores and above). Cores stranded in layers with optimal lay-length. Grey PVC outer sheath. Oil resistant and chemical resistant.
For use as a data cable in control circuits, in tool-making and machine industries as well as a signal cable in computer systems and electronics. The more usual PVC inner sheath has been replaced in these cables by a stabilising foil separator, thus reducing the total diameter of the cables considerably and thereby reducing the bending radius, total weight etc.
Available in 500 metre drums.
Cut lengths available on request.

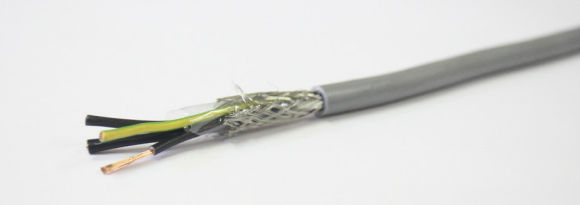

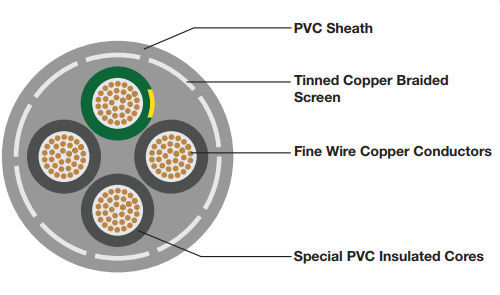

Fine wire copper conductors. Core insulation of special PVC Z 7225. Black cores with continuous white numbering. Green-yellow earth core in the outer layer (3 cores and above). Cores stranded in layers with optimal lay-length. Foil separator. Tinned copper braided screening, approx. 85% area coverage, grey PVC outer sheath.
For use as a data cable in control circuits, in tool-making and machine industries as well as a signal cable in computer systems and electronics. The more usual PVC inner sheath has been replaced in these cables by a stabilising foil separator, thus reducing the total diameter of the cables considerably and thereby reducing the bending radius, total weight etc. The high covering percentage of the copper screening offers, interference-free signal transfer etc. The dense screening assures disturbance-free transmission of all signals and impulses. An ideal disturbance-free control cable for the above application.
Available in 500 metre drums.
Cut lengths available on request.

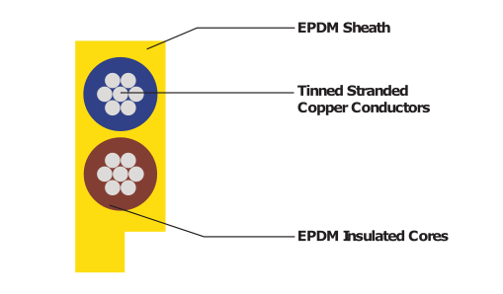

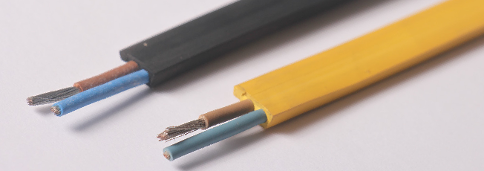

Conductor material copper strand, tinned. Conductor Class super fine wire, core insulation EPDM, core identification blue and brown. No polarity mix-up by geometrically coded. Conforms to RoHS. IEC standard.
Unshielded bus cable for cross-linking of binary sensor and actuators on lowest field level.
For fixed installations as well as occasional flexing at free non-continuously recurring movement without tensile load.
Available in 500 metre drums.
Cut lengths available on request.

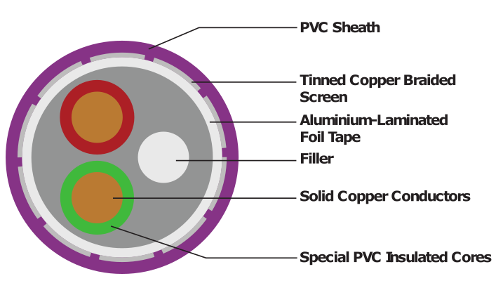

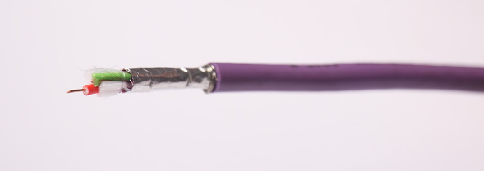

Flame retardant and self-extinguishing. Largely resistant to grease, coolant fluids and lubricants, resistant to oil. Optimal cost-value ratio. Conforms to RoHS.
PVC - Shielded field bus cable for Profibus Systems. For flexible and fixed installations.
Available in 500 metre drums.
Cut lengths available on request.

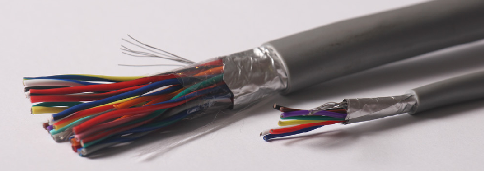

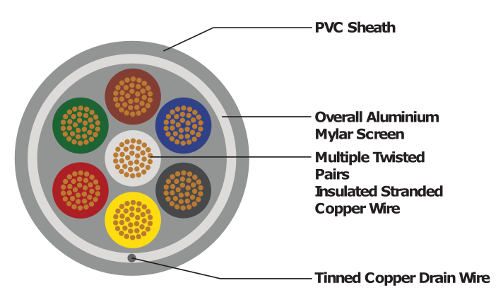

Overall screened cable, against external interference for data / signal transmission. 100% coverage screen. Tinned copper conductors. Twisted pairs. Overall aluminium mylar screen. Tinned copper drain wire. Grey outer PVC sheath.
For interconnections between instruments, sensors and monitors.
Available in 500 metre drums.
Cut lengths available on request.

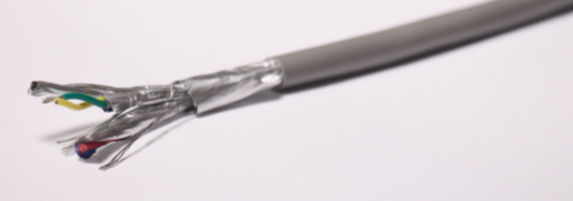

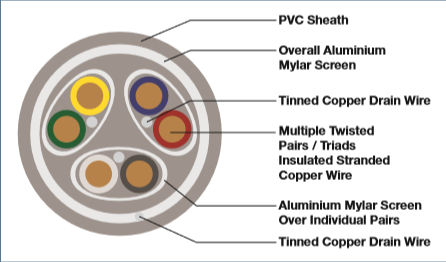

Individual and overall screened cable, against external interference for data / signal transmission. 100% coverage screen. Tinned copper conductors. Twisted pairs. Individual and overall aluminium mylar screen. Tinned copper drain wire. Grey outer PVC sheath.
For interconnections between instruments, sensors and monitors.
Available in 500 metre drums.
Cut lengths available on request.

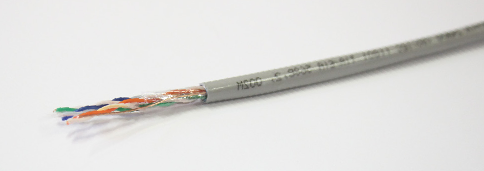

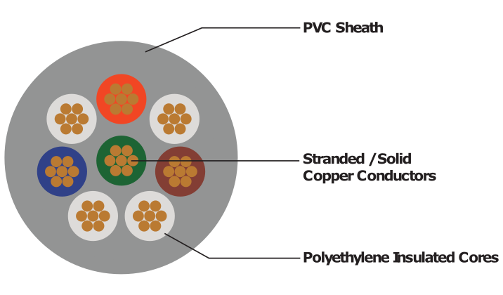

CAT5: Solid / Stranded copper conductors 1x0.51mm ± 0.01mm, insulated with PE Ø 0.9mm ± 0.02mm. 4 twisted pairs. Solid / Stranded. CAT6: Solid / Stranded copper conductors 4x2x0.574mm ± 0.01mm, insulated with high density low molecular weight polyethylene Ø 1.05mm ± 0.05m. Solid / Stranded.
Network cables.
Also available in the following constructions: FTP, STP and SFTP. Also available in a copper cladded aluminium option.
Available in 500 metre drums.
Cut lengths available on request.

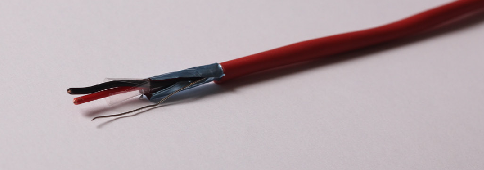

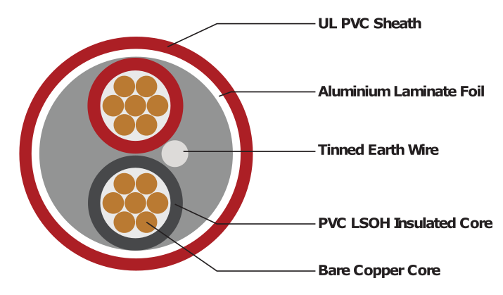

Bare copper, fine wire stranded conductors. Core wrapping with special mica impregnated glass fibre tape. Core insulation of special PVC LSOH. Colour coding. Screening with alu-laminated polyester tape and stranded tinned copper drain wire. Special UL PVC Jacket. Special Halogen free; no evolution of corrosive and toxic gasses. Self-extinguishing and flame retardant.
Fire Resistant cables with Halogen free compounds are mainly used for installation of fire alarm and emergency evacuation systems, where long term electrical circuits are required under fire conditions, and to prevent loss of life and property.
PH30: Assures the functional performance of emergency systems up to 30 minutes.
PH120: Assures the functional performance of emergency systems up to 120 minutes.
Available in 500 metre drums.
Cut lengths available on request.
