Power Cables

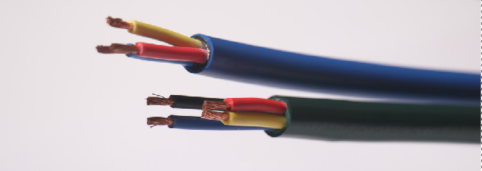

Aquarven

3 A7 4 Core Submersible PVC Flexible Pump Cable
Aquarven

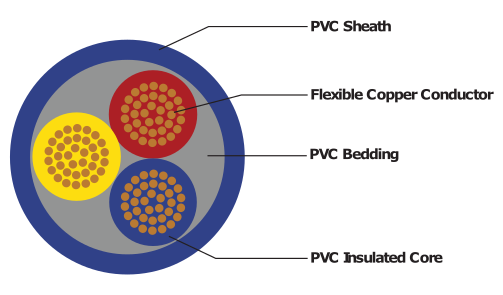

Construction

Highly conductivity bunched flexible copper conductors, insulated and colour coded with general purpose waterproof flexibility PVC. Insulated cores are twisted together and filled with PVC to give the cable a round finish. Final protection is with a tightly bonded waterproof, flexible PVC sheath.

Applications

PVC is superior so rubber is a waterproof submersible cable, therefore AQUAVERN can be used for supplying power to all types of indoor and outdoor, mobile, portable and fixed pumping equipment. AQUAVERN is used as a cost effective alternative to rubber insulted cables for boreholes, drainage, dewatering, cleaning and construction operations, railways, roadworks and factories.

Specification (SABS 1574)
Voltage Rating 600/1000 Volts
Ignition Pulse Voltage Rating 6000 Volts
Test Voltage 3000 Volts
Current Capacity AC As per table below
Temperature Range -10° to +80°C
Flexibility Class 4 & 5
Conductor Type High conductivity annealed copper
Insulation Material Flexible grade waterproof PVC
Sheath Material Flexible grade waterproof PVC
Sheath Colour Blue for 3-core products, Green for 4-core products
Core Colours Red, Yellow, Blue (3-core)
  Red, Yellow, Blue, Black (4-core)

Packaging

Available in 500 drum lengths. Cut lengths also available on request.

This product is sequentially marked at one metre intervals for your convenience and security.

Technical Data

PRODUCT CODE Size mm² Stranding No. & Dia. 600/1000 Cubicle Wiring Amp Ratings mV Drop Amp/mtr Nominal Dia.

Mass kg/100m

1ph 220V 3ph 380V 1ph 220V 3ph 380V
AV01.5X3BE 1.5 28x0.26 16 15 29 25 10.1 14.96
AV02.5X3BE 2.5 44x0.26 23 20 18 15 11.1 19.30
AV04.0X3BE 4.0 49x0.31 30 27 11 9.5 13.0 27.65
AV06.0X3BE 6.0 74x0.31 38 34 7.3 6.4 14.7 37.82
AV10.0X3BE 10.0 126x0.31 52 46 4.4 3.8 16.9 55.77
AV16.0X3BE 16.0 200x0.31 69 62 2.8 2.4 18.9 76.38

AV01.5X4BE 1.5 28x0.26 16 15 29 25 10.9 17.70
AV02.5X4BE 2.5 44x0.26 23 20 18 15 12.0 23.12
AV04.0X4BE 4.0 49x0.31 30 27 11 9.5 14.2 34.10
AV06.0X4BE 6.0 74x0.31 38 34 7.3 6.4 16.0 46.0
AV10.0X4BE 10.0 126x0.31 52 46 4.4 3.8 18.5 68.67
AV16.0X4BE 16.0 200x0.31 69 62 2.8 2.4 20.7 94.87
download product catalogue Download Aquarven Catalogue >>

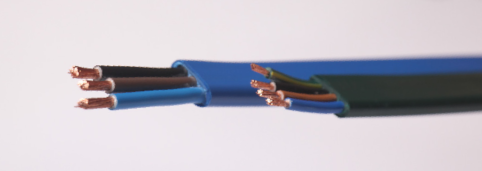

Aquaflat

3 & 4 Core Flat Submersible PVC Flexible Pump Cable
Aquaflat

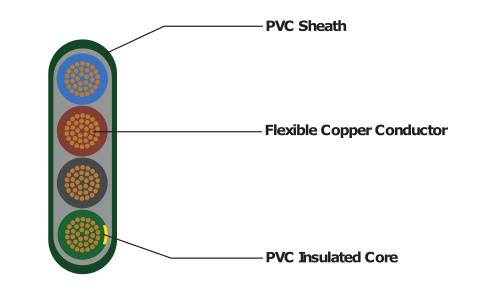

Construction

High conductivity bunched flexible copper conductors, insulted and colour coded with general purpose waterproof flexible PVC. Insulted cores are finally protected with a tightly bonded waterproof, flexible PVC sheath.

Applications

PVC is superior to rubber in a waterproof submersible cable, therefore AQUAFLAT can be used for supplying power to all types of indoor and outdoor, mobile, portable and fixed pumping equipment. AQUAFLAT is used as a cost effective alternative to rubber insulated cables for boreholes, drainage, dewatering, cleaning and construction operations, railways, roadworks and factories.

Specification (SABS 1574)
Voltage Rating 450/750 Volts
Test Voltage 2500 Volts
Temperature Range -10° to +80°C
Flexibility Class 5
Conductor Type High conductivity annealed copper
Insulation Material Flexible grade waterproof PVC
Sheath Material Flexible grade waterproof PVC
Sheath Colour Blue for 3-core products, Green for 4-core products
Core Colours Black, Brown, Blue (3-core)
  Brown, Green/Yellow, Blue, Black (4-core)

Packaging

Available in 500 metre drum lengths. Cut lengths also available on request.

This product is sequentially marked at one metre intervals for your convenience and security.

Technical Data

PRODUCT CODE Size mm² Stranding No. & Dia. 450/750 Cubicle Wiring Amp Ratings mV Drop Amp/mtr Nominal Dia. Mass kg/100m
1ph 220V 3ph 380V 1ph 220V 3ph 380V
AQF01.5X3BE 1.5 28x0.26 16 15 29 25 6.0x12 10.65
AQF02.5X3BE 2.5 44x0.26 23 20 18 15 7.2x14.5 16.11
AQF04.0X3BE 4.0 49x0.31 30 27 11 9.5 7.7x16 24.91
AQF06.0X3BE 6.0 74x0.31 38 34 7.3 6.4 8.3x17.7 32.29
AQF10.0X3BE 10.0 126x0.31 52 46 4.4 3.8 9.7x22 50.97
AQF16.0X3BE 16.0 200x0.31 69 62 2.8 2.4 11.4x26.1 76.24

AQF01.5X4BE 1.5 28x0.26 16 15 29 25 6.2x15.2 13.08
AQF02.5X4BE 2.5 44x0.26 23 20 18 15 7.2x18.2 19.44
AQF04.0X4BE 4.0 49x0.31 30 27 11 9.5 7.7x20.1 32.45
AQF06.0X4BE 6.0 180x0.41 38 34 7.3 6.4 8.3x22.4 42.29
AQF10.0X4BE 10.0 180x0.41 52 46 4.4 3.8 9.7x28.1 67.22
AQF16.0X4BE 16.0 72x0.31 69 62 2.8 2.4 11.4x33.5 100.75
download product catalogue Download Aquaflat Catalogue >>

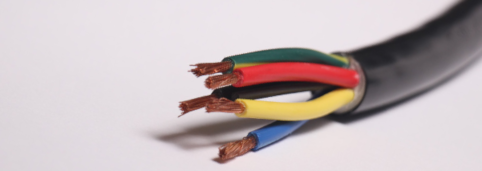

Mastlite

Multicore outdoor Mast lighting Cable
Mastlite

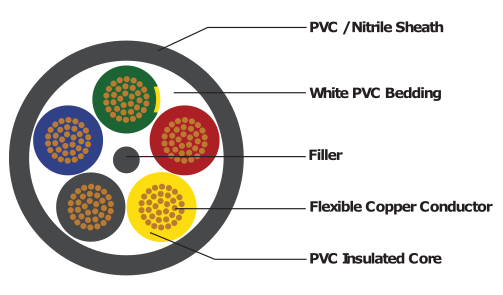

Construction

High conductivity bunched flexible copper conductors, insulated and colour coded with general purpose flexible grade PVC. Insulted cores are twisted and then filled with PVC to give the cable a round finish. Final protection is with a tightly bonded, untraviolet, water, oil and abrasion resistant PVC/rubber nitrile blend sheath

Applications

MASTLITE is used to supply power to all types of indoor and outdoor mast lighting systems, including types requiring ignition pulses of up to 6000 volts. Ideal for use in wet, oily, all weather conditions found in building/ construction sites, workshops, toll road lighting, housing complex security lighting, mines, dockyards, opencast mining operations, railways, roadworks, sports stadiums and factories.

Specification (SABS 1574)
Voltage Rating 600/1000 Volts
Ignition Pulse Voltage Rating 6000 Volts
Test Voltage 3000 Volts
Current Capacity AC As per table below
Temperature Range -10° to +80°C
Flexibility Class 4 & 5
Conductor Type High conductivity annealed copper
Insulation Material General purpose flexible PVC
Sheath Material UV resistant PVC/Rubber Nitrile Blend
Sheath Colour Black
Core Colours 5 Core – Yellow, Red,  Blue, Green/Yellow, Black
  7 Core – Red, Black, Blue, Yellow, Green/Yellow, Brown, Brown with White Tracer

Packaging

Available in 500 metre drum lengths.

Cut lengths are also available on request.

Technical Data

PRODUCT CODE Size mm² No. of Cores Stranding No x Dia. Nominal Dia. Nominal Amps

mV drop Amps/ m

Mass kg/100m
1 ph 220V 3ph 380V
ML2.5X5BK 2.5 5 44X0.26 13.6 20 18 15 28.96
ML2.5X7BK 2.5 7 44X0.26 14.6 20 18 15 35.99
ML4.0X5BK 4.0 5 49X0.31 16.0 27 11 9.5 42.16
ML4.0X7BK 4.0 7 49X0.31 17.5 27 11 9.5 53.35
download product catalogue Download Mastlite Catalogue >>

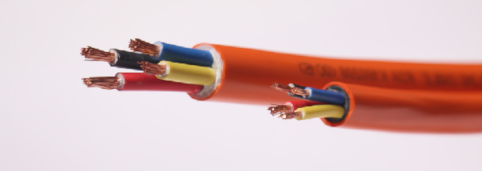

Permotrail

4 Core Trailing Cable
Permotrail

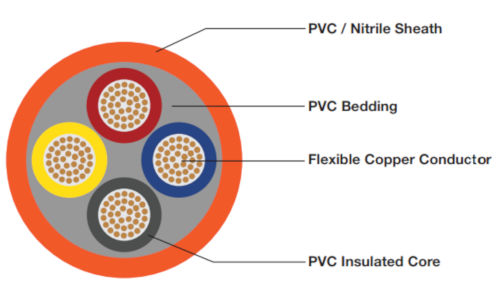

Construction

High conductivity bunched flexible copper conductors, insulted and colour coded with general purpose flexible grade PVC. Insulted cores are twisted and filled with PVC to give the cable a round finish. Final protection is with a tightly bonded, water, oil and abrasion resistant PVC/ rubber blend nitrile sheath.

Applications

The supply of power to all types of indoor and outdoor mobile and portable machinery in wet, oily, all weather conditions. Used on building and construction sites, in workshops, mine, dockyards, opencast mining operations, railways, road works and factories.

Voltage Rating 600/1000 Volts
Test Voltage 3000 Volts
Current Capacity AC As per table below
Temperature Range -10° to +80°C
Flexibility Class 4 & 5
Conductor Type High conductivity annealed copper
Insulation Material Flexible grade PVC
Sheath Material PVC/ Rubber Blend Nitrile
Sheath Colour Orange
Core Colours Red, Yellow, Blue, Black
Bending Radius 8xDiameter of cable

Packaging

Available in 500 metre drums. Cut lengths are also available on request. This product is sequentially marked at one metre intervals for your convenience and security.

Technical Data

PRODUCT CODE Size mm² Stranding No & Dia. Nominal Amps

mV drop Amps/m

Nominal Dia. Mm Mass kg/100m
  1ph 220V 3ph 380V
PT01.5X40R 1.5 28X0.26 15 29 25 10.9 17.38
PT02.5X40R 2.5 44X0.26 20 18 15 12.0 22.79
PT04.5X40R 4.0 49X0.31 27 11 9.5 14.7 34.80
PT06.0X40R 6.0 74X0.31 34 7.3 6.4 16.1 45.28
PT10X40R 10.0 126X0.31 46 4.4 3.8 19.1 69.80
PT16X40R 16.0 200X0.31 62 2.8 2.4 21.3 96.10
PT25X40R 25.0 180X0.41 80 1.75 1.5 26.3 147.30
PT35X40R 35.0 252X0.41 99 1.25 1.1 31.7 213.10
download product catalogue Download Permotrail Catalogue >>

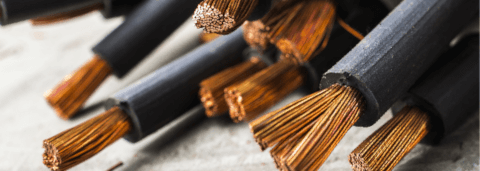

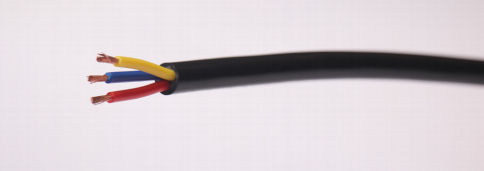

AL-VK (R-VK)

4 Core Trailing Cable
AL-VK (R-VK)

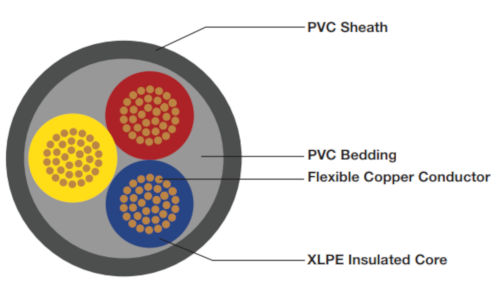

Construction

High conductivity bunched, flexible copper conductors, insulated and colour coded with XPLE. Insulated and twisted and filled with PVC to give the cable a round finish. Final protection is with a tightly bonded, water, oil, and abrasion resistant PVC.

Applications

The supply of power to all types of indoor and outdoor mobile and portable machinery in wet, oily, all weather conditions. Used on buildings and construction sites, in workshops, mines, dockyards, opencast mining, railway, road works and factories.

Voltage Rating 600/1000 Volts
Test Voltage 3000 Volts
Current Capacity AC As per table below
Temperature Range -10° to +80°C
Flexibility Class 4 & 5
Conductor Type High conductivity annealed copper
Insulation Material XLPE
Sheath Material Flexible grade PVC
Sheath Colour Black
Core Colours Red, Yellow, Blue, Black

Packaging

Available in 500 metre drum lengths. Cut lengths are also available on request. This product is sequentially marked at one metre intervals for your convenience and security.

Technical Data

PRODUCT CODE Size mm² Stranding No & Dia.

Nominal Amps

mV drop Amps/m

Nominal Dia. Mm Mass kg/100m
1ph 220V 3ph 380V 1ph 220V 3ph 380V
ALVK1.50X3BK 1.5 27X0.26 25 23 29 25 10.9 16.55
ALVK2.50X3BK 2.5 44X0.26 35 32 18 15 11.9 21.73
ALVK4.00X3BK 4.0 49X0.31 45 42 11 9.5 13.4 29.56
ALVK6.00X3BK 6.0 74X0.31 59 54 7.3 6.4 15.25 40.68
ALVK10.0X3BK 10.0 130X0.31 81 75 4.4 3.8 18.0 64.15
ALVK16.0X3BK 16.0 200X0.31 108 100 2.8 2.4 20.2 89.61
ALVK25.0X3BK 25.0 312X0.31 137 127 1.7 1.5 25.3 139.93

ALVK1.50X4BK 1.5 27X0.26 25 23 29 25 10.9 16.55
ALVK2.50X4BK 2.5 44X0.26 35 32 18 15 11.9 21.73
ALVK4.00X4BK 4.0 49X0.31 45 42 11 9.5 13.4 29.56
ALVK6.00X4BK 6.0 74X0.31 59 54 7.3 6.4 15.25 40.68
ALVK10.0X4BK 10.0 130X0.31 81 75 4.4 3.8 18.0 64.15
ALVK16.0X4BK 16.0 200X0.31 108 100 2.8 2.4 20.2 89.61
ALVK25.0X4BK 25.0 312X0.31 137 127 1.7 1.5 25.3 139.93
download product catalogue Download AL-VK (R-VK) Catalogue >>

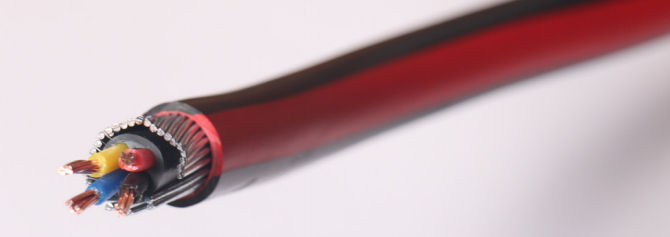

Steel Wire Armoured F/R

24 Core Swa Cable
Steel Wire Armoured F/R

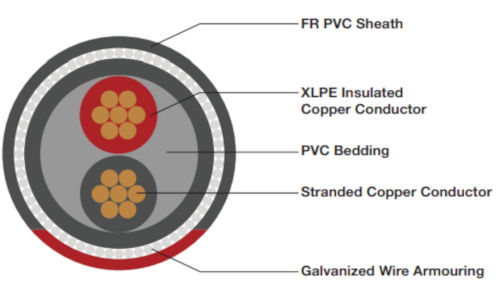

Construction

High conductivity bunched, stranded copper conductors, insulated and colour coded XLPE. Insulated cores are twisted and filled with PVC to give the cable a round finish. It is armoured with a galvanized steel wire. Final protection is tightly bonded, with a Flame Retardant PVC.

Applications

To supply power to all types of fixed installations.

Voltage Rating 600/1000 Volts
Test Voltage 6000 Volts
Current Capacity AC As per table below
Temperature Range -10° to +80°C
Bending Radius 15 x Cable Diameter
Protection Steel wire
Flexibility Class 1 & 2
Conductor Type High conductivity annealed copper
Insulation Material XLPE
Sheath Material Flame Retardant PVC
Sheath Colour Black with Blue Stripe
Core Colours 2 Core – Red, Black
3 Core – Red, Yellow, Blue
4 Core – Red, Yellow, Blue, Black

Packaging

Available in 500 metre drums. Cut lengths also available request.

technical Data

PRODUCT CODE Size mm² Nominal Amps mV drop Amps/mtr Nominal Dia. As/No. of Cores Mass kg/100m
2C 3C 4C 2C 3C 4C
SWA 1.5x* 1.5 18 25.0 11.9 14.13 14.49 27 45 50
SWA 2.5x* 2.5 25 15.0 12.6 15.23 16.18 31 52 59
SWA 4.0x* 4 33 9.50 14.4 17.02 18.39 38 67 76
SWA 6.0x* 6 42 6.40 15.4 18.40 19.72 46 79 91
SWA 10.0x* 10 58 3.80 19 20.41 21.96 83 99 117
SWA 16.0x* 16 77 2.40 20 22.37 25.92 118 130 177
download product catalogue Download Steel Wire Armoured F/R Catalogue >>

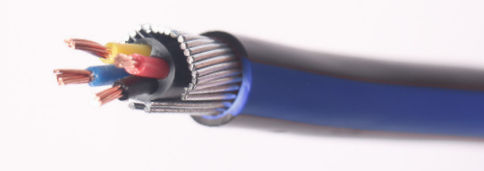

Steel Wire Armoured L/H

2-4 Core Swa Cable
Steel Wire Armoured L/H

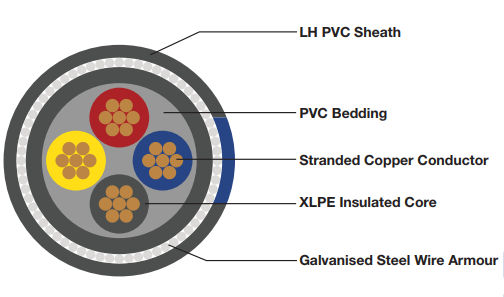

Construction

High conductivity bunched, stranded copper conductors, insulated and colour coded XLPE. Insulated cores are twisted and filled with PVC to give cable a round finish. It is armoured with a galvanized steel wire. Final protection is tightly bonded, with a flame Retardant, Low halogen PVC.

Applications

To supply power to all types of fixed installations.

Voltage Rating 600/1000 Volts
Test Voltage 6000 Volts
Current Capacity AC As per table below
Temperature Range -10° to +80°C
Bending Radius 15 x Cable Diameter
Protection Steel wire
Flexibility Class 1 & 2
Conductor Type High conductivity annealed copper
Insulation Material PVC
Sheath Material Flame Retardant PVC/ Flame Retardant – Low Halogen
Sheath Colour Black with Blue Stripe
Core Colours 2 Core – Red, Black
3 Core – Red, Yellow, Blue
4 Core – Red, Yellow, Blue, Black

Packaging

Available in 500 metre drums. Cut lengths also available request.

Technicala Data

PRODUCT CODE Size mm² Nominal Amps mV drop Amps/mtr Nominal
Dia. As/No. of Cores
Mass kg/100m
2C 3C 4C 2C 3C 4C
SWA 1.5x* 1.5 18 25.0 11.9 14.13 14.49 27 45 50
SWA 2.5x* 2.5 25 15.0 12.6 15.23 16.18 31 52 59
SWA 4.0x* 4 33 9.50 14.4 17.02 18.39 38 67 76
SWA 6.0x* 6 42 6.40 15.4 18.40 19.72 46 79 91
SWA 10.0x* 10 58 3.80 19 20.41 21.96 83 99 117
SWA 16.0x* 16 77 2.40 20 22.37 25.92 118 130 177
download product catalogue Download Steel Wire Armoured L/H Catalogue >>
