Specialised Cables

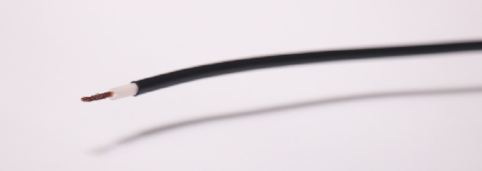

Slimline

High Voltage Undergate Cable
Slimline

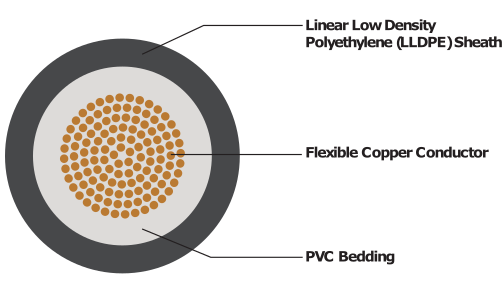

Construction

High conductivity annealed flexible copper conductor, insulated with a thin layer of general purpose grade PVC and sheathed with (LLDPE) cut & abrasion resistant linear low density polyethelene which resists a broad spectrum of chemicals and soil acids in a circular configuration.

Applications

For the feeding of and interconnection of high voltage pulses in all types of high voltage security fencing systems.

Specification
Voltage Rating 20 000 Volts (pulsed)
Test Voltage 6000 Volts
Current Capacity AC As per table below
Temperature Range -10° to +115°C
Flexibility Class  4
Conductor Type High conductivity annealed copper
Insulated Material General purpose grade PVC
Sheath Material LLPDE (Linear Low density polyethelene)
Colour Black

Packaging

Available in 30, 50, and 100 metre shrink wrap coils and 1000 metre reels.

Technical Data

PRODUCT CODE Conductor Dia. mm2 Dielectric Thickness mm Sheath Thickness mm Nominal Dia. mm Mass kg/100m
UG1.1x1BK 1.39 0.50 0.90 4.2 2.28
download product catalogue Download Slimline Catalogue >>

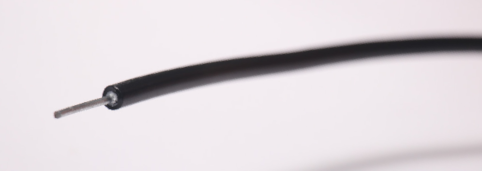

Undergate Cable

High Voltage Undergate Cable
Undergate Cable

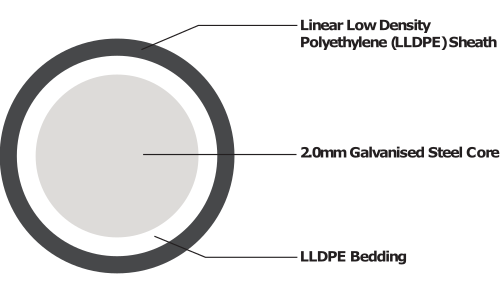

Construction

A high tensile galvanized wire extruded with a high dielectric strength virgin grade naturally linear low density polyethylene and oversheathed with a 2.5% carbon loaded high performance weather, cut and abrasion resistant linear low density polyethylene, sheathed with cut & abrasion resistant linear low density polyethelene (LLDPE) which resists a broad spectrum of chemicals and soil acids.

Applications

For the feeding and interconnection of high voltage pulses in all types of high voltage security fencing systems where continuity is required under roads and gates.

Specification (In-house Specification)
Voltage Rating 25000 Volts (pulsed)
Test Voltage 6000 Volts
Current Capacity AC As per table below
Temperature Range -10° to +115°C
Flexibility Class  1
Conductor Type 2.0mm diameter galvanized wire
Insulated Material LLDE (Linear low density polyethylene)
Sheath Material 2.5% Carbon Loaded High Performance Linear low density polyethylene
Sheath Colour Black
Ductility Min 6% before break

Packaging

Available in 25, 50, 100 and 200 metre shrink-wrapped coils and 1000 metre drums.

Technical Data

PRODUCT CODE Conductor Dia. mm2 Dielectric Thickness mm Sheath Thickness mm Nominal Dia. mm Mass kg/100m
UG2.0x1BK 2.0 1.0 1.20 6.4 5.43
download product catalogue Download Undergate Cable Catalogue >>

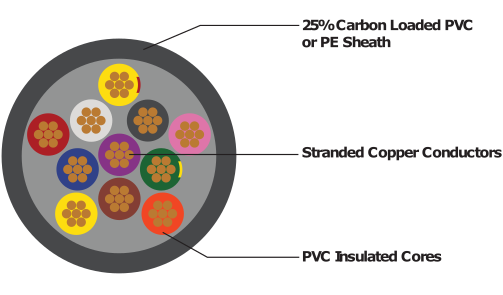

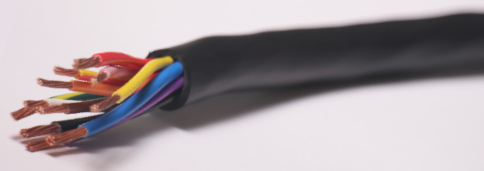

Aquaspray

Composite Multicore Irrigation Machine Cable
Aquaspray

Construction

Mixed sizes of high conductivity stranded copper conductors, insulated and colour coded with general purpose grade PVC, laid up and sheathed in hard 2.5% carbon loaded ultraviolet weather-resistant PVC. V191 has an aluminum tape shield and is then sheathed with a UV, water resistant polyethylene.

Applications

For outdoor use without further protection in rough agricultural conditions on all types of normal and computer controlled irrigation machines for power supply and control of motors and valves.

Specification
Voltage Rating 500 Volts
Test Voltage 2000 Volts
Temperature Range -10° to +80°C
Flexibility Class 2
Conductor Type High conductivity annealed copper
Insulation Material Colour coded, general purpose PVC
Sheath Material 2.5% Carbon loaded ultraviolet abrasion and weather-resistant PVC or polyethylene
Sheath Colour Black
Core Colours 4 Core 4.0 mm2 Black, Blue, Red, Yellow
9 Core 4.0 mm2 Black, Blue, Red
             1.5 mm2 Yellow, White, Orange, Violet, Brown, Pink
11 Core 3.31 mm2; Red, Black, Blue, Green/Yellow
              2.1 mm2 Yellow, Pink, White, Violet, Orange, Brown, Yellow/Red

Packaging

Available in cut lengths or drums as per customer requirements.

Technical Data

PRODUCT CODE Size mm2 Stranding No x Dia. Nominal Dia. Mass kg/100m
AS9BK 9 4.0mm2 x3 + 1.50 mm2 x6 14.7 42.33
V181 4 2.10mm2 x4 13.0 22.33
V191 11 5.30mm2 x4 + 2.10mm2 x7 20.2 68.44
V192 11 5.30mm2 x4 + 2.10mm2 x7 16.8 56.81
V193 11 2.50mm2 x4 + 1.50mm2 x7 15.2 41.75
V11BK3E2086 11 3.31mm2 x4 + 2.10mm2 x7 15.2 45.52
download product catalogue Download Aquaspray Catalogue >>

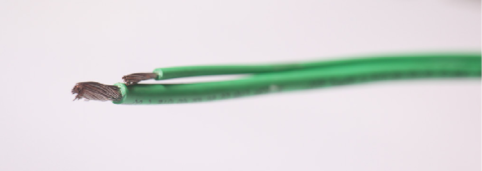

Fire Retardant Single Flex

Halogen-free, flame-returdant cross-linked
Fire Retardant Single Flex

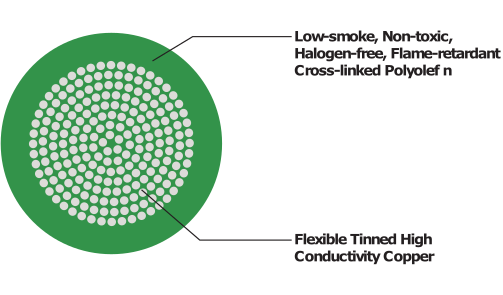

Construction

High conductivity bunched, tinned flexible copper conductors, insulated with low smoke, non-toxic, halogen-free, flame-retardant cross-linked polyoefin. The fire retarding process greatly enhances the tensile strength, abrasion resistance, heat resistance and shrink back qualities of the insulation, while retaining its excellent ultraviolet, oil and water resistance. The principal advantage is that the insulation does not soften conductor burning through the insulation and damaging any adjacent wiring.

Applications

For the wiring of all types of high temperature and high performance control panels, locomotive and rolling stock control panels, signaling relay racks, elevator control panels, electrical motor winding lead out connections, etc. this product is used where above normal performance is required for fire prevention and where safety and reliability are of major concern. As this product has enhanced qualities and performance, it is used by public transport services.

Specification (RS/EE/SP/015)
Voltage Rating 500 Volts
Test Voltage 2000 Volts
Temperature Range -20° to +125°C
Flexibility Class  5
Conductor Type Tinned flexible high conductivity copper
Insulated Material Low-smoke, non-toxic, halogen-free, flame-retardant  cross-linked polyoefin

Packaging

Available in 100 metre shrink-wrapped coils

Technical Data

PRODUCT CODE Size mm2 Stranding No x Dia. Nominal Dia. Nominal Amps Mass kg/100m
SF001.5GNFRTCW 1.5 28x0.26 3.5 19 2.09
SF002.5GNFRTCW 2.5 42x0.26 3.9 27 3.34
SF004.0GNFRTCW 4.0 48x0.31 4.6 35 5.01
SF006.0GNFRTCW 6.0 72x0.31 5.4 43 6.98
SF0010.0GNFRTCW 10.0 126x0.31 6.8 60 11.89
SF0016.0GNFRTCW 16.0 200x0.31 8.5 77 17.60
SF0025.0GNFRTCW 25.0 312x0.31 10.0 100 27.81
download product catalogue Download Fire Retardant Single Flex Catalogue >>

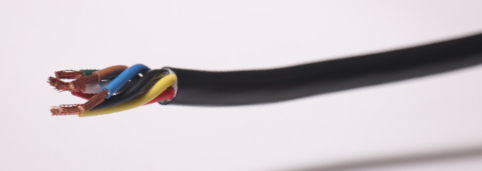

Automotive Trailer

Multicore Automotive Cable
Automotive Trailer

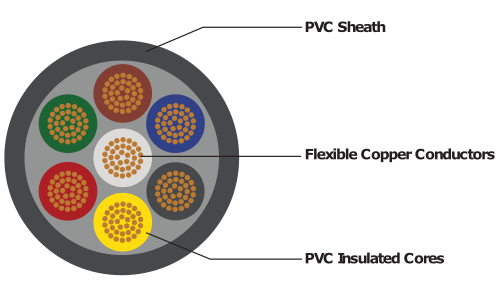

Construction

High conductivity bunched plain annealed flexible copper conductors, insulated and colour coded with general purpose grade PVC. Cores are then twisted together and sheathed in general purpose PVC. Insulation and sheath are resistant to water, lubricating oils, dilute acids and abrasion.

Applications

For the wiring of all types of light and heavy duty motor vehicles and trailers in the original equipment and replacement markets by auto electricians, Transport Services, Municipalities, Telkom, Eskom and all major transport and road haulage companies and trailer manufacturers.

Specifications (SABS 1017 as a guide)
Voltage Rating 100 Volts
Test Voltage 1000 Volts
Temperature Range -10° to +80°C
Flexibility Class  4 & 5
Conductor Type High conductivity annealed copper
Insulation Material General Purpose grade PVC
Sheath Material Ultra violet, oil, dilute acid and abrasion resistant general purpose grade PVC
Sheath Colour Black. (Grey 2 Core)
Core Colours 2 Core – Black, Red
5 Core- Blue, Brown, Yellow, Black, White
7 Core- Yellow, Red, White. Blue, Brown, Black, Green/Yellow

Packaging

Available in 30 metre shrink-wrapped coils

AM 1.6x7BK available in 30 & 100 metre shrink-wrapped coils and 1000 metre drums.

Technical Data

PRODUCT CODE Size mm2 Size AWG No. of Cores Stranding No x Dia. Nominal Dia. Mass kg/100m
AM1.60x2GY 1.6 15 2 22x0.31 6.7 5.85
AM11.60x5BK 1.6 15 5 22x0.31 8.6 14.41
AM11.60x7BK 1.6 15 6x1.6 22x0.31 10.6 21.76
  2.5 13 1x2.5 34x0.31
download product catalogue Download Automotive Trailer Catalogue >>

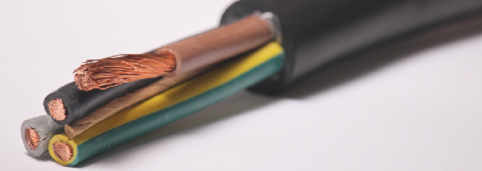

HO7RN-F

Heavy Duty Rubber Insulated
HO7RN-F

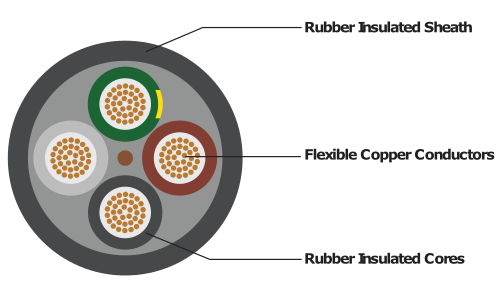

Construction

Plain copper wire stranding insulted with EPR rubber and sheathed with polychlorophene. The cores are colour coded according to International harmonized codes.

Applications

For use on ships, in docks & harbours, factory and different types of industrial purposes. This product is also most suitable for domestic use is RoHS compliant. Insulation & sheath are resistant to water, lubrication oils, dilute acids and abrasion.

Specification
Voltage Rating 405/750 Volts
Test Voltage 1000 Volts
Temperature Range -25° to +60°C
Flexibility Class 4 & 5
Conductor Type High conductivity annealed copper
Insulation Material Flexible grade PVC
Sheath Material PVC/Rubber Blend Nitrile
Sheath Colour    Orange
Core Colours Blue, Red, Grey, Black
Bending Radius 4 x Diameter of cable

Packaging

Available in 500 metre drums. Cut lengths are also available on request.

Technical Data

Nominal
Size mm2
Max. Diameter of wires mmInsulation Thickness mmSheath Thickness mmOuter Diameter mmMax. cond. Resist. At 20°C 0hm/kmCable Weight kg/km
1Gx1.50.260.81.45.913.355
1Gx2.50.260.91.46.67.9870
1Gx40.311.01.57.54.9595
1Gx60311.01.68.33.30120
1Gx100.411.21.810.01.91195
1Gx160.411.21.911.11.21265
1Gx250.411.42.012.90.780385
1Gx350.411.42.214.50.554510
1Gx500.411.62.416.80.382685
1Gx700.511.62.619.10.272940
1Gx950.511.82.821.30.2061245
1Gx1200.511.83.023.40.1611535
1Gx1500.512.03.225.70.1391880
1Gx1850.512.23.428.10.1062315
download product catalogue Download HO7RN-F Catalogue >>

HO7RN-F

Heavy Duty Neoprene
HO7RN-F 1

Technicala Data

Nominal
Size mm2
Max. Diameter of wires mm Insulation Thickness mm Sheath Thickness mm Outer Diameter mm Max. cond. Resist. At 20°C 0hm/km Cable Weight kg/km
2Gx1 0.21 0.8 1.3 7.9 19.5 90
2Gx1.5 0.26 0.8 1.5 8.8 13.3 115
1Gx2.5 0.26 0.9 1.7 10.4 7.98 160
2Gx4 0.31 1.0 1.8 12.0 4.95 225
2Gx6 0.31 1.0 2.0 13.5 3.30 295
2Gx10 0.41 1.2 3.1 18.1 1.91 540
2Gx16 0.41 1.2 3.3 20.2 1.21 725
2Gx25 0.41 1.4 3.6 23.7 0.780 1050
2Gx35 0.41 1.4 3.8 26.3 0.554 1350
2Gx50 0.41 1.6 4.2 30.6 0.382 1830

3G1 0.21 0.8 1.4 8.7 19.5 110
3G1.5 0.26 0.8 1.6 9.6 13.3 140
3G2.5 0.26 0.9 1.8 11.3 7.98 205
3G4 0.31 1.0 1.9 13.1 4.95 285
3G6 0.31 1.0 2.1 14.7 3.30 375
3G10 0.41 1.2 3.3 19.8 1.91 695
3G16 0.41 1.2 3.5 22.0 1.21 940
3G25 0.41 1.4 3.8 25.9 0.780 1365
3G35 0.41 1.4 4.1 29.0 0.554 1790
3G50 0.41 1.6 4.5 33.6 0.382 2420
3G70 0.51 1.8 5.3 42.8 0.206 4370
3G95 0.51 1.8 5.3 42.8 0.206 4370
3G120 0.51 1.8 5.6 46.9 0.161 5355

4G1 0.21 0.8 1.5 9.6 19.5 135
4G1.5 0.26 0.8 1.7 10.6 13.3 170
4G2.5 0.26 0.9 1.9 12.5 7.98 250
4G4 0.31 1.0 2.0 14.4 4.95 345
4G6 0.31 1.0 2.3 16.4 3.30 470
4G10 0.41 1.2 3.4 21.6 1.91 850
4G16 0.41 1.2 3.6 24.0 1.21 1160
4G25 0.41 1.2 4.1 28.7 0.780 1725
4G35 0.41 1.4 4.4 32.1 0.554 2255
4G50 0.41 1.4 4.8 37.2 0.382 3045
4G70 0.51 1.6 5.2 42.4 0.272 4175
4G95 0.51 1.6 5.9 48.0 0.206 5590
4G120 0.51 1.8 6.0 52.1 0.161 6800

5G1.5 0.26 0.8 1.8 11.7 13.3 210
5G2.5 0.26 0.9 2.0 13.8 7.98 305
5G4 0.31 1.0 2.2 16.1 4.95 430
5G6 0.31 1.0 2.5 18.3 3.30 585
5G10 0.41 1.2 3.6 23.9 1.91 1040

7G1.5 0.26 0.8 2.6 15.5 13.3 360
7G2.5 0.26 0.9 2.8 18.0 7.98 500
download product catalogue Download HO7RN-F Catalogue >>

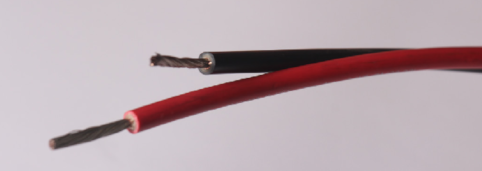

Solar PV1-F

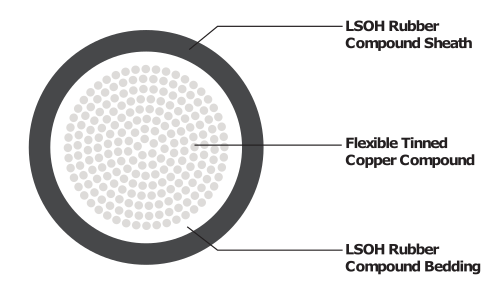

Construction

Flexible tin plated copper class 5 CEI EN 60228, LSOH Rubber compound type G12, LSOH Rubber Compound t6ype M21. Single core cables, for photovoltaic and solar system use, elastomeric compound insulted and sheathed. Flame retardant, halogen free, and low smoke flexible cables for fixed laying, lifetime testing 20.000h/120°C.

Applications

Cable suitable for the interconnection of the various elements of photovoltaic systems. Suitable for fixed installation outside and inside without protection or inside pipes, ducts or similar closed systems High resistance against ozone, U.V. rays, oils, moisture and weather inclemencies. Suitable for use at an ambient temperature up to 90°C (120°C overload) and tested according to TUV-Rheinland 2 1169/08.2007 Standard. The estimated lifetime of these cables is at least 25 years.

Specification
Voltage Rating 1800 Volts DC
Temperature Range    -40° to +90°C
Flexibility Class 4 & 5
Conductor Type Flexible tin plated/ Copper class – 5CEI EN 60228
Insulation Material XL Halogen Free FR
Sheath Material XL Halogen Free FR
Sheath Colour    Black, Red
Bending Radius 4 x Diameter of cable

Packaging

Available in 500 metre drums

Technical Data

Nominal Size mm2 Max. Diameter of wires mm Insulation Thickness mm Sheath Thickness mm Outer Diameter mm Max. cond. Resist. At 20°C 0hm/km Cable Weight kg/km
1x4 0.31 0.7 0.8 5.5 5.09 62
1x6 0.31 0.7 0.8 6.1 3.39 85
1x10 0.41 0.7 1.0 7.5 1.95 135
1x16 0.41 0.7 1.0 8.5 1.24 200
download product catalogue Download Solar PV1-F Catalogue >>
