Equipment Cables

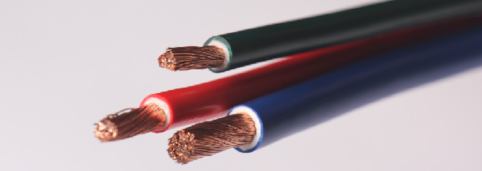

Flex-O-Power

Flexible welding & Power Cable
flex-o-power

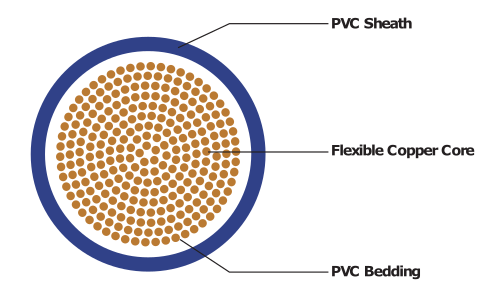

Construction

High conductivity bunched flexible annealed copper conductors, insulated with soft flexible grade PVC suitable for welding and power purpose only.

Applications

FLEXIBLE-O-POWER is manufactured with flexible grade PVC, which makes it a user friendly flexible welding and power cable. FLEXIBLE-O-POWER can be used on all types of indoor and outdoor electric welding and power equipment.

Specification (SABS 1574 as a guide)
Voltage Rating 1000 Volts
Test Voltage 2000 Volts
Current Capacity AC As per appendix 2 -  when used in welding applications.
Temperature Range -107deg; to +80° C
Flexibility Classes 4&5
Conductor Type High conductivity annealed copper
Insulation Material Soft flexible grade PVC
Colour Options Standard or phase colour

Packaging

Available in shrink-wrapped 100 metre coils and on 500 metre drums.

Cut length are also available on request.

This product is sequentially marked at one metre interval for your convenience and security.


Technical Data

PRODUCT CODE Size mm2 Stranding No x Dia Nominal Dia Sheath Colour Mass kg/100m 600/1000V Cubicle Wiring Amp Ratings
1ph 220V 3ph 280V
FOW012BK 12 230 x 0.26 8.1 Black

16.4

65 60
FOP016GN

16

120 x 0.41 8.7 Green 20.1 76 68
FOP025BE 25

180 x 0.41

9.9 Blue 28.8 101 89
FOP035GY 35 252 x 0.41 11.0 Grey 39.28 125 110
FOP050RD 50 366 x 0.41 13.4 Red 54.94 151 134
FOP070BN 70 342 x 0.501 15.4 Brown 76.0 192 171
download product catalogue Download Flex-O-Power Catalogue >>

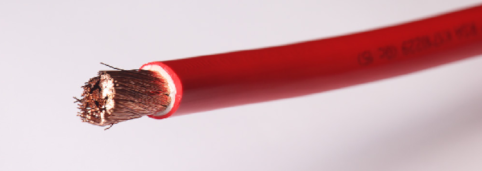

Permopower

Power & Welding Cable
Permopower

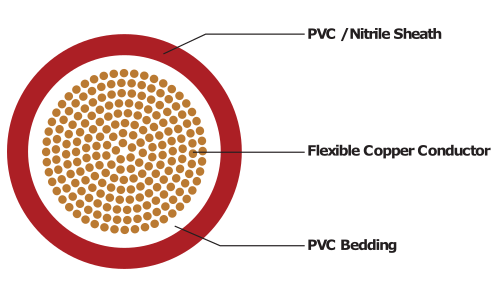

Construction

High conductivity bunched flexible copper conductors with primary insulation of general purpose grade PVC and a tightly bonded water and oil resistant PVC/rubber nitrile blend sheath.

Specification (SABS 1507)
Test Voltage 6000 Volts
Current Capacity AC As per table below
Temperature Range -10° to +80°C
Flexibility Class 4 & 5
Conductor Type High conductivity annealed copper
Sheath Material PVC/Rubber nitrile blend
Color Options Blue, Black, Green/Yellow, Red
  (Standard Welding Colours + Phase Colours)

Packaging

Available in 500 metre drums. Cut lengths are also available on request.

This product is sequentially marked at one metre intervals for your convenience and security.

Technical Data

PRODUCT CODE Size mm2; Stranding No x Dia. Nominal Dia. Mass kg/100m 600/1000V Cubicle Wiring Amp Ratings
1ph 220V 3ph 380V
PP016# 16 120x0.41 9.4 21.9 76

68

PP025# 25 180x0.41 10.4 30.33 101 89
PP035# 35 252x0.41 11.8 41.44 125 110
PP050# 50 366x0.41 14.4 59.88 151 134
PP070# 70 516x0.41 14.1 83.0 192 171
PP095# 95 465x0.501 18.6 107.06 232 207
PP120# 120 582x0.501 21.3 136.92 269 239
PP150# 150 762x0.501 24.7 179.32 300 262
PP185# 185 924x0.501

26.8

220.10 341 296
download product catalogue Download Permopower Catalogue >>

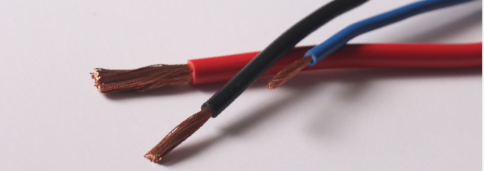

Panel Flex/Single Flex

Single Core Multi Stranded Panel Flex / Single Flex
Panel Flex/Single Flex

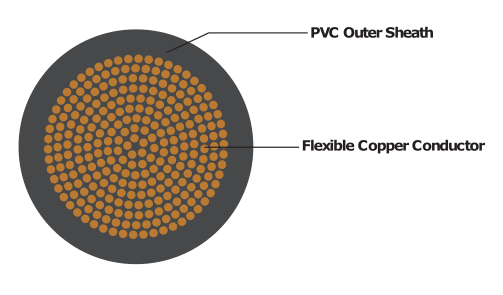

Construction

High conductivity bunched plain annealed flexible copper conductors, insulated with general purpose grade PVC in all colours. Insulation is water, oil and abrasion resistant.

Applications

For the wiring of all types of control panels, light fittings, appliances, communication panels, signaling relay racks as well as many other applications. Manufactured to SABS 1574, these products are used by public transport services, municipalities, Telkom, Eskom, major switchgear companies, electrical contractors and electricians.

Specification (SABS 1574)
Voltage Rating PF type 300/500 Volts
  SF type 600/1000 Volts
Test Voltage 5000/6000 Volts
Current Capacity AC As per table below
Temperature Range -10° to +80°C
Flexibility Class 4 & 5
Conductor Type High conductivity annealed copper
Insulation Material Flexible  grade PVC
Color Options Blue, Black, Brown, Yellow, Green/Yellow, Orange, Pink, Violet, Grey, White, Red and Green.

Packaging

Available in 100 metre shrink-wrapped coils.

Technical Data

PRODUCT CODE Size mm2 Stranding No x Dia. Nominal Dia. Nominal Amps Mass kg/100m
PF0.50# 0.5 14x0.21 2.1 3 0.89
SF000.75# 0.75 21x0.21 2.7 6 1.39
SF001.00# 1.0 28x0.21 2.9 13.5 1.67
SF001.50# 1.5 42x0.21 3.2 17 2.21
SF002.50# 2.5 44x0.26 3.6 24 3.10
SF004.00# 4.0 48x0.31 4.5 32 5.05
SF006.00# 6.0 72x0.31 5.1 41 7.02
SF010.00# 10.0 128x0.31 6.18 57 11.53
SF016.00# 16.0 200x0.31 7.3 76 17.53
SF025.00# 25.0 306x0.31 9.1 101 28.12
SF035.00# 35.0 440x0.31 9.8 125 36.74
SF050.00# 50.0 632x0.31 12.4 151 53.82
SF070.00# 70.0 904x0.31 14.0 192 73.87
SF095.00# 95.0 678x0.41 16.3 232 99.09
SF120.00# 120.0 864x0.41 18.4 269 123.53
download product catalogue Download Panel Flex/Single Flex Catalogue >>

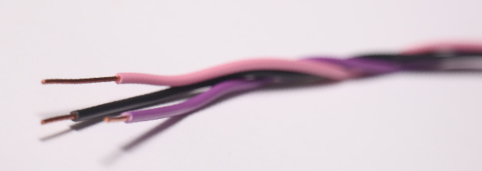

Panel Solid

Single Core Solid Panel Wire
Panel Solid

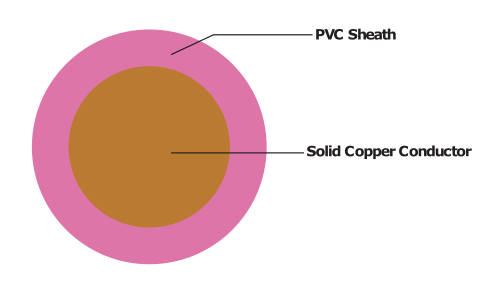

Construction

High conductivity solid plain annealed copper conductor, insulated with general purpose grade PVC in plain colours. Insulation is waster, oil and abrasion resistant.

Specification (SABS 1507-2)
Voltage Rating 300/500 Volts
Test Voltage 2250 Volts
Current Capacity AC 8 Amps
Temperature Range -10° to +80°C
Flexibility Class 1
Conductor Type High conductivity annealed copper
Insulation Material General purpose grade PVC
Color Options Blue, Black, Brown, White, Red, Violet, Green, Grey, Orange, Pink and Yellow

Packaging

Available in 100 metre shrink-wrapped coils.

Technical Data

PRODUCT CODE Size mm Nominal Dia. Nominal Amps Mass kg/100m
PS1.0# 1.0 2.1 8 1.1
