Construction

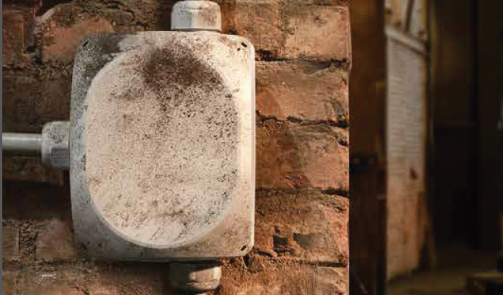

Cable entry via integrated elastic membranes or metric knockouts. With elastic membranes, which can be removed for cable entry via cable glands. Multi-level knockouts for cable glands in different sizes. Degree of protection: IP 66.

Applications

For indoor installation in industrial and commercial buildings. Safe in industrial and commercial applications with demanding and tough environments.

Packaging

Per unit.

Construction

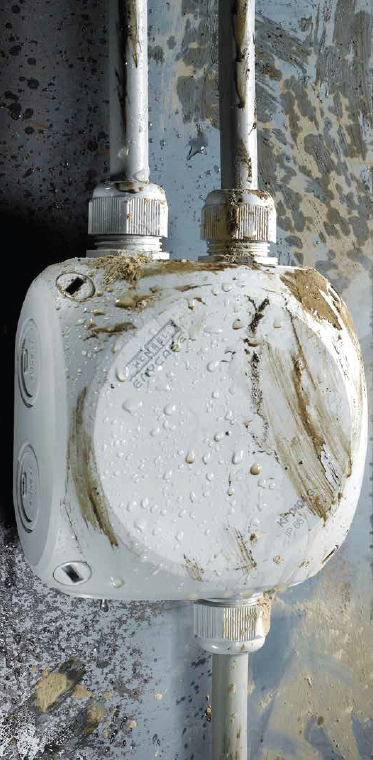

Cable entry via metric knockouts. Degree of protection: IP 66 / IP 67 / IP 69 with cable glands as accessories, temporary submersion up to 1 meter, max 15 minutes. Comply with the regulatory restrictions for buildings with requirements regarding the structural fire protection DIN VDE 0100 Part 482 (German Standard).

Applications

Weatherproof, for unprotected outdoor installation in harsh environment and offshore applications. Robust and weatherproof - for offshore applications and use outdoors in harshest conditions of industrial and commercial applications.

Packaging

Per unit.

Construction

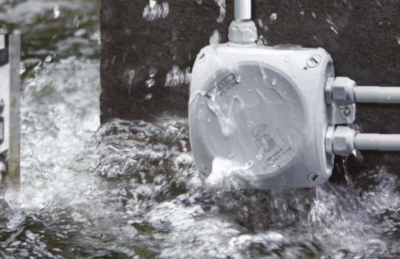

Cable entry via metric knockouts. Degree of protection: IP 68 with submersion up to 20 meters, 168 hours. The quantity of the sealing compound is always matched to the product - never too much or too little material during processing. The lid can be removed for inspection purposes, the sealing compound can be easily removed for subsequent installations or inspections.

Applications

Waterproof, for encapsulation. For outdoor installation and use in harsh environmental conditions with risk of condensation and ingress of water as well as for ground installation without traffic loads.

Packaging

Per unit.

Construction

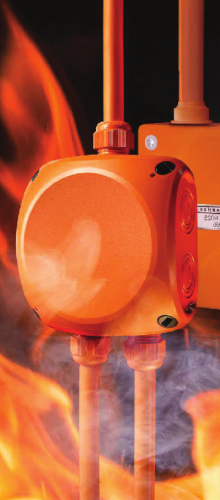

Cable entry via metric knockouts and grommets. Intrinsic fire resistance in accordance with DIN 4102 Part 12 (German standard) in combination with function-retaining cables. Insulation integrity PH120 in accordance with BS EN 50200 in combination with insulation retaining cables. Screw anchors, high-temperature-resistant ceramic terminal E30 up to E90 and cable entries included as standard. Multi-level knockouts for cable glands in different sizes. Cable junction box for large cable cross sections up to 50mm².

Applications

For buildings with public traffic, to guarantee the emergency power supply in the event of a fire.

Packaging

Per unit.

Features

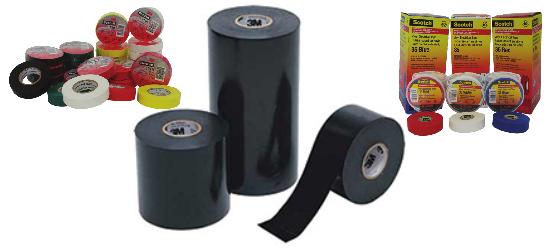

• Good quality general use polyvinyl chloride (PVC) tape.
• High dielectric stength, is conformable and provides very good mechanical protection with minimum bulk.
• Flame retardant; SANS 122 compliant - SABS Tested.
• Excellent resistance to abrasion, moisture, alkalis, acid, UV light and varying weather conditions.
• Suitable for voltages of up to 600V and continuous operating temperatures of 80°C.
• Available in six colours.

Applications

• Economical SABS tested general use tape.
• Primary electrical insulation for all wire and cable joint repairs.
• Protective jacketing, harnessing and bundling for cables.

Features

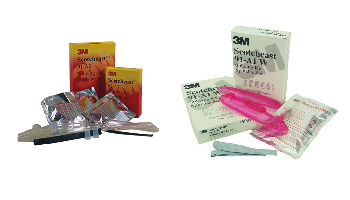

• It utilizes a slim line mould with a two part amber transparent epoxy (82-A1) / Polyurethane (82-A2/3) resin with excellent chemical, mechanical and electrical properties.
• Resin stable up to 1100V : does not run once cured.
• Resin meets SABS 526 and SABS 150 standards. Kits meet VDE 0278, BS 6910 and are SABS Tested.
• Rated up to 1.1KV.
• Unaffected by solvents, ozone, UV light and moisture.
• Tried and tested in local environment for over 30 years.
• SABS performance test reports available on request.

Applications

• The ScotchcastTM 82 A Series Low Voltage Resin joints are designed to be used for multi-core non-shielded polymeric low voltage electrical cables.
• Suitable for indoor and outdoor applications.
• Suitable for underground and submerged applications. Ideal for borehole application where space is limited.

Available in 500 metre drums.
Cut lengths available on request.

Kit Contents

• Ferrule tubes.
• Earthing materials.
• Disposable resin dispensing materials.
• High-K mastic and 2228 tape.
• Rejacketing materials.
• Scotchcast 52FR resin.

Features & Benefits

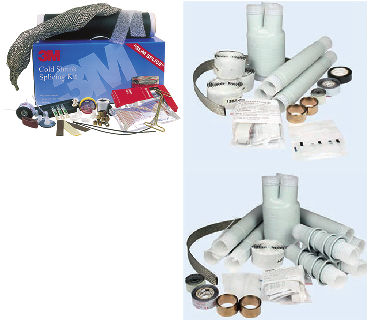

• Cold shrink installation.
• EPDM rubber.
• Good dielectric strength.
• Kit accomodates wide cable range.
• Slim design - ideal for rack installations.
• Resin filled.
• Each kit is supplied with step-by-step instruction including pictures.
• Suitable for all cable and connector types.
• Continuous radial pressure ensures a tight natural seal.
• Easy, safe and quick installation.
• No special tooling or heating required.
• 1000 series termination kits were designed to terminate 11kV 3-core XLPE cables.
• Silicone rubber Cold Shrink tubes are used over the cores and a Cold Shrink sheath seal resembling a three fingered glove to divide the crutch of the termination.
• The kit also includes: High-K stress control tube, Scotch No.13 and 33 tapes, putty, and TR cable preparation kit.
• Detailed instructions are supplied with the kit.
