At first glance, a cable may appear to be a simple product. In reality, a cable is a carefully engineered system made up of multiple layers, each designed to perform a specific function.
From the conductor at the center to the outer sheath, every layer plays a role in ensuring performance, safety, and reliability. When the wrong cable is selected for an application, the consequences can include equipment damage, safety risks, and costly downtime.
Understanding cable construction highlights why selecting the correct cable for the job is so important.

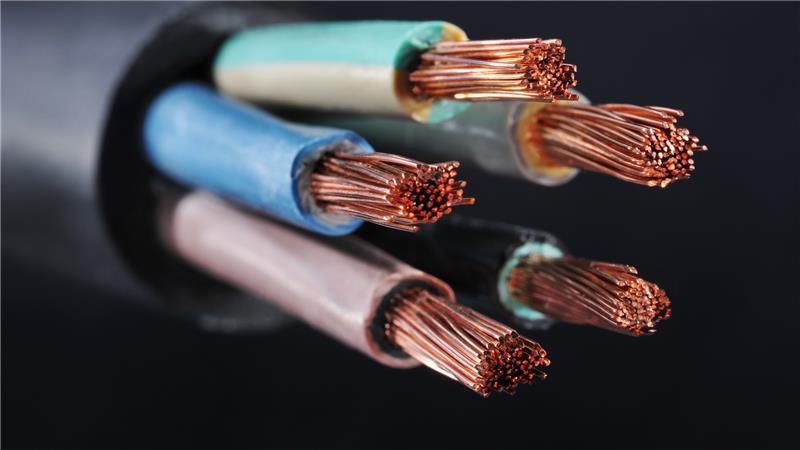

The Conductor – Carrying the Current
At the core of every cable is the conductor. Typically made from copper or aluminum, the conductor is responsible for transmitting electrical current efficiently.
The size, material, and construction of the conductor determine the cable’s current-carrying capacity and overall electrical performance.
Insulation – Preventing Electrical Failure
Surrounding the conductor is the insulation layer. This material prevents electrical leakage and short circuits by isolating the conductor from surrounding components.
High-quality insulation ensures safe operation and protects both equipment and people from electrical hazards.
Protective Layers – Strength and Durability
Beyond the conductor and insulation, many cables include additional layers that provide mechanical strength and environmental protection.
These may include bedding layers that help maintain the cable’s internal structure, armour that protects against mechanical damage, and outer sheaths that defend the cable against moisture, chemicals, abrasion, and UV exposure.
These protective layers allow cables to operate reliably in demanding environments such as industrial plants, construction sites, mining operations, and infrastructure projects.
There Is No Single Cable Design
While many cables share common components, there is no single cable construction that applies to every application.
Different environments and operating conditions require different cable designs. Depending on the purpose of the cable, additional layers may be included such as shielding to reduce electromagnetic interference, water-blocking layers to prevent moisture ingress, fire-resistant barriers for safety-critical installations, or braiding to provide flexibility and mechanical protection.
Each layer is engineered to solve a specific challenge and ensure the cable performs as intended.
Choosing the Right Cable for the Right Job
Selecting the correct cable is not simply about voltage or current ratings. Factors such as environmental conditions, installation methods, mechanical stress, temperature, and chemical exposure all influence which cable is suitable.
Using the wrong cable can lead to premature failure, safety risks, and costly operational disruptions.
A cable may look simple from the outside, but the engineering beneath the sheath is what determines whether it performs safely and reliably over time.
Every layer has a purpose and selecting the correct cable ensures the right solution for the job.
